งานรับผลิต ( Washers Ring )
Washers Ring

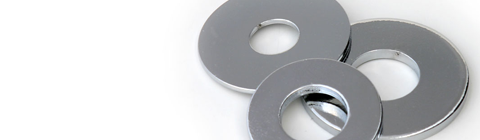

Flat washers
Circular rings

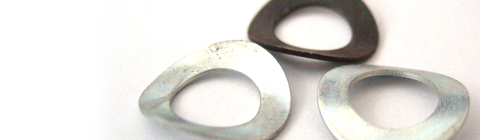

Wave washers

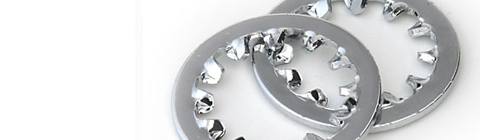

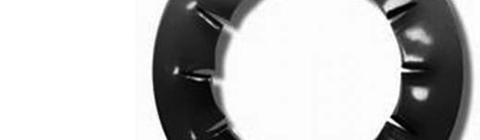

Teeth washers

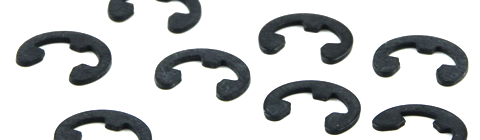

E-Rings

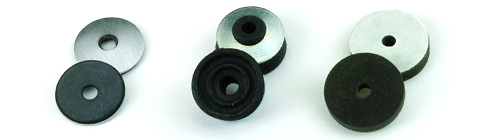

EPDM washers
D DI D2 S
M1.6 1.7 4.0 0.3
M2 2.2 5.0 0.3
M2.5 2.7 6.0 0.5
M3 3.2 7.0 0.5
M3.5 3.7 8.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.0 1.6
M8 8.4 16.0 1.6
M10 10.5 20.0 2.0
M12 13.0 24.0 2.5
M14 15.0 28.0 2.5
M16 17.0 30.0 3.0
M18 19.0 34.0 3.0
M20 21.0 37.0 3.0
M22 23.0 39.0 3.0
M24 25.0 44.0 4.0
M27 28.0 50.0 4.0
M30 31.0 56.0 4.0
M33 34.0 60.0 5.0
M36 37.0 66.0 5.0
M39 42.0 72.0 6.0
M42 45.0 78.0 8.0
M45 48.0 85.0 8.0
M48 52.0 92.0 8.0
M52 56.0 98.0 8.0
M56 62.0 105.0 10.0
M60 66.0 110.0 10.0
M64 70.0 115.0 10.0
D DI D2 S
M2.5 2.7 8.0 0.8
M3 3.2 9.0 0.8
M3.5 3.7 11.0 0.8
M4 4.3 12.0 1.0
M5 5.3 15.0 1.0
M6 6.4 18.0 1.6
M8 8.4 24.0 2.0
M10 10.5 30.0 2.5
M12 13.0 37.0 3.0
M14 15.0 44.0 3.0
M16 17.0 50.0 3.0
M18 19.0 56.0 4.0
M20 21.0 60.0 4.0
M22 23.0 66.0 5.0
M24 25.0 72.0 5.0
M27 30.0 85.0 6.0
M30 33.0 92.0 6.0
M33 36.0 105.0 6.0
M36 39.0 110.0 6.0
D DI D2 S
M5 5.5 18.0 2.0
M6 6.6 22.0 2.0
M8 9.0 28.0 3.0
M10 11.0 34.0 3.0
M12 14.0 45.0 4.0
M16 18.0 58.0 5.0
M20 22.0 68.0 5.0
M22 24.0 80.0 6.0
M24 26.0 92.0 6.0
M27 30.0 98.0 6.0
M30 33.0 105.0 6.0
M33 36.0 112.0 6.0
M36 39.0 125.0 8.0
M39 42.0 140.0 8.0
M42 45.0 15.0 8.0
M45 48.0 160.0 8.0
M48 52.0 170.0 10.0
M52 56.0 180.0 10.0
